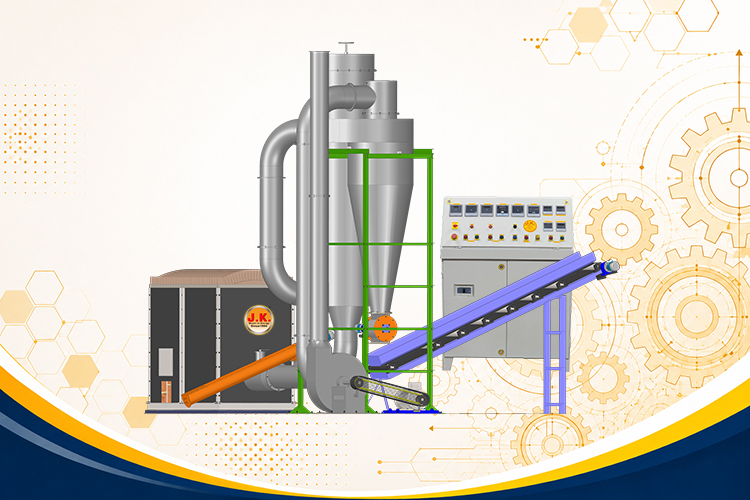

Biomass Dryer Machine Manufacturer
Our Biomass Dryer Machine is an efficient industrial drying solution designed to reduce excess moisture from biomass for briquetting, pelletizing, and biomass energy applications. It uses Flash Turbo Drying Technology to deliver fast and uniform moisture removal.
Wet biomass is fed through a Screw Conveyor into the drying pipeline, where hot air from the Hot Air Furnace rapidly removes moisture. An ID Fan carries the material through the system, while the Cyclone Separator efficiently separates and collects the dried biomass.
Suitable for sawdust, wood chips, rice husk, bagasse, cotton stalks, groundnut shells, corn cobs, agricultural waste, forestry residues, and other biomass materials.
The system can reduce moisture from approximately 30–45% to 8–15%, producing dry, process-ready material for briquetting presses, pellet mills, biomass boilers, and power plants.
Technical Specifications
Advantages of Dryer Machine
The Dryer machine uses a Hot Air Furnace, Screw Conveyor, ID Fan, Drying Pipeline, and Cyclone Separator to reduce the moisture content of Wet biomass such as sawdust, wood granding powders, agricultural waste,. The material is conveyed into the drying pipeline, where hot air rapidly removes moisture. The dried biomass is then separated in the cyclone and discharged with the ideal moisture content, ready for briquetting, pelletizing, and other industrial applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Machine Type | Biomass Dryer Machine |
| Drying Technology | Turbo Dryer (Model Dependent) |
| Drying Method | Hot Air Drying with Controlled Airflow |
| Input Raw Material | Any agriculture waste, any wood grinding powder |
| Input Material Size | Diameter up to 3 mm and length up to 10 mm |
| Suitable Moisture Content (Input) | Up to 35% (depending on raw material) |
| Output Moisture Content | 8–15% (adjustable based on application) |
| Heating Source | Biomass Furnace / Hot Air Generator |
| Feeding System | Belt Conveyor or Screw Conveyor |
| Discharge System | Cyclone Separator with Airlock / Screw Conveyor |
| Airflow System | High-Efficiency Centrifugal Blower |
| Fuel Type | Biomass Briquettes, Wood Waste, Wood Logs, or Other Biomass Fuels |
| Construction | Heavy-Duty Mild Steel Fabrication |
| Insulation | High-Temperature Thermal Insulation |
| Control Panel | PLC / Standard Electrical Control Panel (Optional) |
| Operation | Continuous Industrial Operation (24×7) |
| Maintenance | Low Maintenance with Easy Access to Components |
| Applications | Briquetting Plants, Pellet Plants, Biomass Power Plants, Industrial Fuel Preparation |
Raw Materials
At Jay Khodiyar Machine Tools, the Biomass Drying System uses a screw conveyor, pneumatic conveying line, Hot Air Furnace, and cyclone separator to ensure fast, uniform, and energy-efficient drying. It is suitable for processing sawdust, wood chips, wood powder, rice husk, bagasse, bamboo dust, groundnut shells, cotton stalks, agricultural waste, forestry waste, municipal solid waste, and other biomass materials.
Dryer Working Process
- Raw Material Feeding: Wet biomass is fed into the dryer through a feeding hopper or screw conveyor.
- Material Conveying: The screw conveyor continuously transfers the material into the drying chamber.
- Hot Air Drying: A hot air furnace generates high-temperature air, which rapidly removes moisture from the biomass.
- Cyclone Separation: The dried biomass is separated from the hot air and collected for further processing.
- Dust Collection: Fine dust is captured by the air pollution control system before clean air is released.
- Ready for Production: The dried biomass is ready for briquetting, pelletizing, biomass boilers, and other industrial applications.
This process ensures fast, uniform, and energy-efficient drying, delivering biomass with the ideal moisture content for high-performance fuel production.
Standard Models (Typical)
| Model | Power | Capacity | Input Moisture | Output Moisture |
|---|---|---|---|---|
| JK-BD-2000 | 61 HP | 2 TPH | Up to 40% | 8–15% |
| JK-BD-3000 | 73 HP | 3 TPH | Up to 40% | 8–15% |
| JK-BD-5000 | 90 HP | 4 TPH | Up to 40% | 8–15% |
Note: Drying capacity depends on the raw material type, initial moisture content, particle size, ambient conditions, heating source, and dryer configuration. Custom biomass drying machine are available to meet specific production capacities and process requirements.
