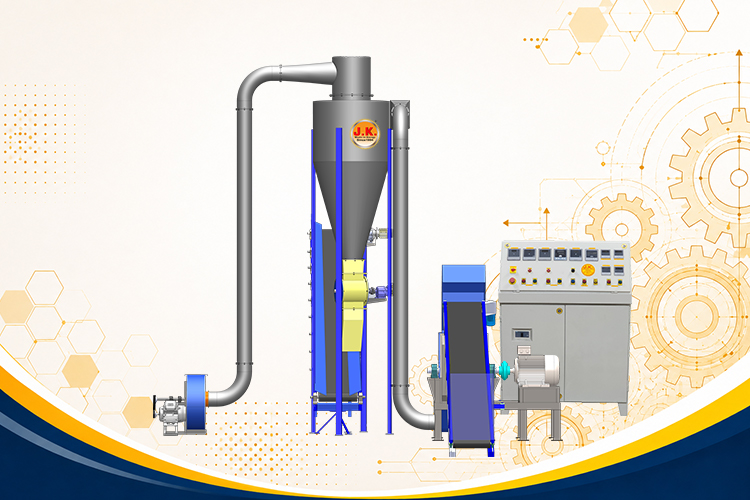

Hammer Mill Machine Manufacturer
Our Biomass Hammer Mill Machine is a robust size-reduction solution engineered to transform a wide range of biomass and agricultural residues into uniform, process-ready particles. Designed for continuous industrial operation, it delivers efficient grinding performance for applications such as briquetting, pelletizing, biomass fuel production, animal feed, and waste recycling.
At Jay Khodiyar Machine Tools, our hammer mills are designed with a focus on high throughput, reliable operation, low maintenance, and consistent particle size. The high-speed rotor drives specially designed hammers that impact and grind the incoming material against hardened liners and screens, ensuring efficient pulverization and controlled output.
The machine is suitable for processing wood chips, sawdust, bamboo waste, rice husk, groundnut shells, cotton stalks, corn cobs, bagasse, forestry residues, and other biomass materials. It can handle non-uniform biomass with moisture content up to 20% and wood chips up to 25 mm, making it well suited for preparing raw materials before briquetting or pellet production.
Technical Specifications
Advantages of Hammer Mill Machine
Hammer Mill Machine reduces biomass into uniform-sized particles through high-speed impact, making the material suitable for briquetting, pelletizing, and biomass fuel production.
Technical Specifications
| Parameter | Specification |
|---|---|
| Machine Type | Industrial Hammer Mill |
| Feeding Material Type | Any type of agriculture waste and Wood Chips |
| Maximum Feed Size | 50mm (Length) x 25mm (Width) x 25mm(Thick) |
| Input Material Moisture | Up to 20% |
| Output Material Size | Up to 8 mm (Customized) |
| Feeding System | Integrated Belt Conveyor Feeding System |
| Grinding Mechanism | High-Speed Rotating Hammers |
| Discharge System | Pneumatic Airflow Discharge |
| Particle Size | Customizable through interchangeable screens |
| Construction | Heavy-Duty Mild Steel Fabrication |
| Rotor Material | High-Strength Alloy Steel |
| Hammer Material | Wear-Resistant Hardened Steel |
| Screen Type | Replaceable Perforated Screen |
| Drive System | Electric Motor with Belt Drive |
| Operation | Continuous Duty (24×7 Industrial Use) |
| Maintenance | Easy Access for Hammer & Screen Replacement |
| Applications | Biomass Briquetting, Pellet Plants, Biomass Boilers, Biofuel Processing |
| Suitable Raw Materials | Wood Chips, Sawdust, Rice Husk, Groundnut Shells, Cotton Stalks, Corn Cobs, Bagasse, Bamboo Waste, Coconut Shell, Agro & Forestry Biomass |
Hammer Mill Working Process
- Material Feeding: Raw materials are fed into the hammer mill through an integrated belt conveyor for a continuous and controlled supply.
- High-Speed Grinding: Rotating hardened hammers repeatedly strike the material, breaking it into smaller particles.
- Screening: The ground material passes through a perforated screen, while oversized particles remain for further grinding.
- Pneumatic Discharge: An airflow system transfers the uniformly ground biomass to the next process, such as drying, briquetting, or pelletizing.
This efficient process ensures consistent particle size, high productivity, and reliable performance for a wide range of biomass materials.
Note: Capacities vary depending on the raw material type, moisture content, feed size, and the screen size selected. Custom configurations are available to meet specific production requirements.
Key Features
- Heavy-duty industrial construction
- High-speed grinding for maximum efficiency
- Handles biomass with up to 20% moisture content
- Processes wood chips up to 25 mm
- Produces uniform particle size
- Energy-efficient and low-maintenance design
- Continuous operation with high production capacity
- Suitable for briquetting, pelletizing, and biomass processing plants
Applications
- Biomass Briquetting Plants
- Biomass Pellet Plants
- Wood Processing Industries
- Agro-Waste Recycling
- Animal Feed Processing
- Biomass Power Plants
- Biofuel Manufacturing
- Waste-to-Energy Projects
Standard Models (Typical)
| Model | Power | Capacity* |
|---|---|---|
| HM-50 | 60 HP | 800–1,500 kg/hr |
| HM-75 | 75 HP | 1.5–2.5 TPH |
| HM-100 | 100 HP | 2.5–4 TPH |
| HM-100 | 150 HP | 4.5–6 TPH |
Note: Capacities vary depending on the raw material type, moisture content, feed size, and the screen size selected. Custom configurations are available to meet specific production requirements.
