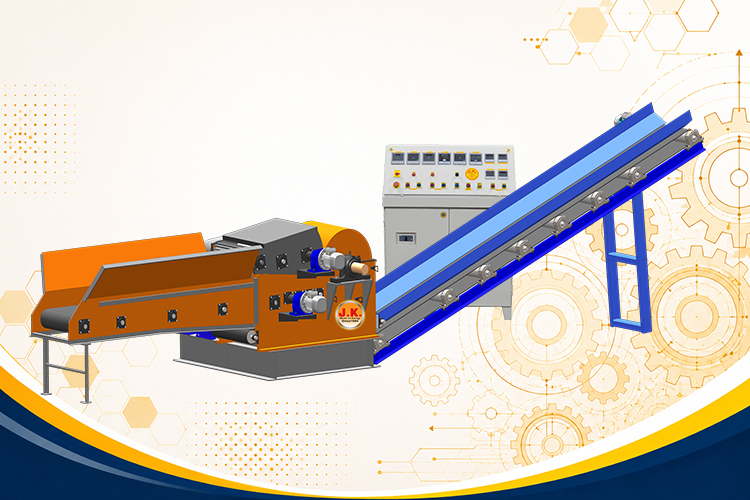

Wood Chipper Machine Manufacturers
Our Wood Chipper Machine is a robust industrial solution designed to efficiently convert wood logs, tree trunks, branches, bamboo, veneer waste, sawmill residues, and forestry waste into consistent wood chips for further processing.
At Jay Khodiyar Machine Tools, our Wood Chippers are engineered for high-capacity operation, reliable performance, durability, and low maintenance. The machine can process wood with up to 50% moisture content, logs up to 400 mm diameter, and material lengths from 300 mm to 3000 mm.
The uniform wood chips produced are suitable for biomass briquetting machine, pellet production, biomass power generation, paper mills, MDF manufacturing, and other wood-processing applications.
With heavy-duty construction and efficient chipping performance, our Wood Chipper helps convert bulky wood waste into valuable, process-ready wood powder sawdust material.
Technical Specifications
Advantages of Wood Chipper Machine
The raw material is fed into the machine through a belt conveyor, where feed rollers guide it into the cutting chamber. A high-speed rotating drum fitted with heavy-duty blades cuts the wood into uniform chips. The finished chips are then discharged through the output conveyor, ready for further processing or storage.
Technical Specifications
| Parameter | Specification |
|---|---|
| Machine Type | Drum Type Wood Chipper Machine |
| Chipping Technology | High-Speed Drum with Replaceable Cutting Knives |
| Input Material | Wood Logs, Tree Branches, Tree Trunks, Timber Offcuts, Forestry Waste |
| Maximum Log Diameter | 50 to 400 mm |
| Log Length | 300–3000 mm |
| Raw Material Moisture | 25 to 50% |
| Output Material Size | Up to 15mm (Customizable) |
| Feeding System | Belt Conveyor with Hydraulic Feed Rollers |
| Cutting System | Heavy-Duty Drum with Alloy Steel Knives |
| Knife Material | Hardened High-Carbon Alloy Steel |
| Drive System | Heavy-Duty Electric Motor with Belt Drive |
| Discharge System | Belt Conveyor |
| Construction | Heavy-Duty Mild Steel Fabrication |
| Control Panel | PLC / Standard Electrical Control Panel (Optional) |
| Operation | Continuous Industrial Operation (24×7) |
| Maintenance | Easy Knife Adjustment and Replacement |
| Applications | Biomass Briquetting Plants, Pellet Plants, Biomass Power Plants, Paper & Pulp Industry, MDF & Particle Board Industry |
Wood Chipper Working Process
1. Raw Material Feeding
Wood logs, tree trunks, branches, bamboo, timber waste, and other wood materials are loaded onto the feeding belt conveyor.
2. Automatic Feeding
Heavy-duty hydraulic or mechanical feeding rollers firmly grip the wood and feed it continuously into the cutting chamber at a controlled speed.
3. Chipping Process
Inside the machine, a high-speed rotating drum equipped with hardened alloy blades cuts the wood into uniform wood chips or wood powder. The sharp cutting blades ensure efficient processing with minimal power consumption.
4. Material Discharge
The finished wood chips or wood powder are discharged through the output conveyor for easy collection and transportation.
5. Ready for Further Processing
The processed material can be directly used in:
Key Features
- Heavy-duty drum-type cutting system
- Automatic conveyor feeding system
- Processes hardwood and softwood
- Handles wet wood with up to 50% moisture content
- Processes logs up to 400 mm diameter
- Suitable for wood lengths from 300 mm to 3000 mm
- Produces uniform wood chips
- High-capacity continuous operation
- Low maintenance and energy-efficient design
Applications
- Biomass Briquetting Plants
- Biomass Pellet Plants
- Wood Processing Industries
- Animal Feed Processing
- Biofuel Manufacturing
- Waste-to-Energy Projects
- Industrial Boilers Furnaces
- Biomass Drying Systems
- Paper and Pulp Industries
- MDF and Particle Board Manufacturing
Standard Models (Typical)
| Model | Power (HP) | Maximum Log Diameter | Capacity* |
|---|---|---|---|
| WC-30 | 30 HP | Up to 150 mm | 1–2 TPH |
| WC-50 | 50 HP | Up to 200 mm | 2–4 TPH |
| WC-75 | 75 HP | Up to 300 mm | 4–6 TPH |
| WC-100 | 100 HP | Up to 400 mm | 6–10 TPH |
Note: Machine capacity depends on the wood species (hardwood or softwood), log diameter, moisture content, knife condition, and feeding speed. Custom-built wood chipper machine with higher capacities and motor ratings are available to suit specific industrial requirements.
Request Quote
We are a leading manufacturer of high-performance hammer mill machine, designed for efficient crushing and size reduction of biomass, wood chips, agricultural waste, and other fibrous materials.
We are a leading manufacturer of high-performance biomass dryer machines, designed to efficiently reduce moisture in biomass, agricultural waste, wood chips, sawdust, and other raw materials.

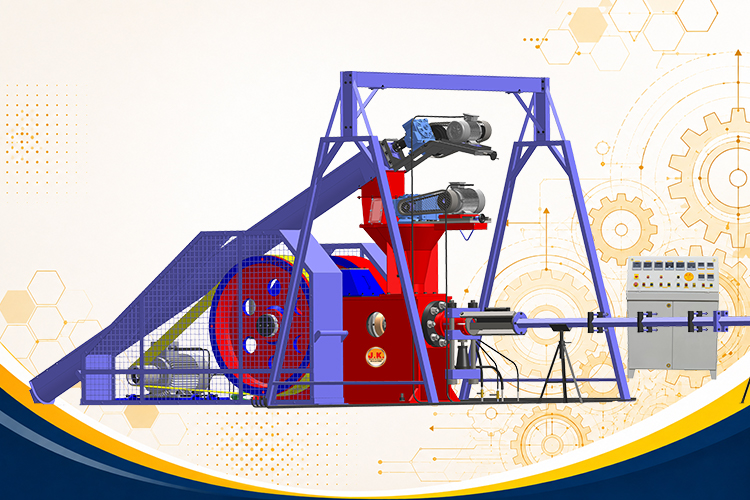

We are a leading manufacturer of high-performance biomass briquette presses, designed to convert agricultural, forestry, and biomass waste into dense, eco-friendly fuel briquettes.
